Screen Printers

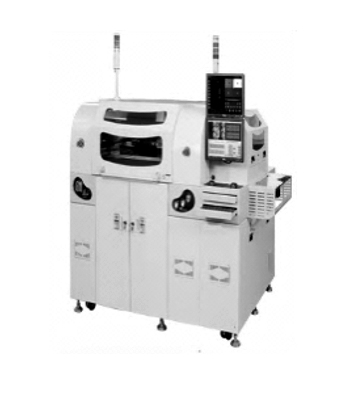

SCREEN PRINTER MULTI-FUNCTION

Printing (±0.0125mm) Repeatability (±0.01mm) 0.3 Pitch QFP, 0402 Chip, Ø0.2 MBGA. Speed/pressure control by printing section (5 sections) . Various PCB Clamping by PCB type. Various Auto Under Stencil Cleaning . Improved lead-release utilizing the multistage sheet separation method. Convenient to change the stencil size with the LM Guide. Array PCB Inspection. Load-cell control for precise pressure control. The optimum solution for total-number in-line inspection. Convenient interface for model change

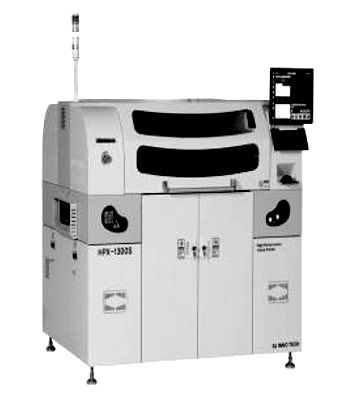

LED SCREEN PRINTER

SQ Left to Right printing. Compatible with the 1240mm Lamp PCB. 2.0 Cpk @ ±25㎛. Stencil Align & PCB Up/Down One Click, All-Axis Auto Align. Paste Fall Improvement .0402, Mega (0.2¢). Array PCB Inspection . Load-cell control for precise pressure control.

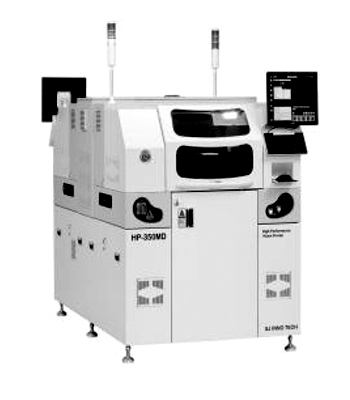

DUAL RAIL SCREEN PRINTER

Dual-stage stand-alone operation method. Fine Pitch(0.3mm), CSP, 0402.
Speed/pressure control by printing section (5 sections) . Array PCB Inspection . Load-cell control for precise pressure control 2.0 Cpk @ ±25㎛ . Cycle time 6 sec (for Single)
(excluding the printing time)
(approx. 11 sec for actual PCB production (for Single)

Notice: Image may differ from actual unit.
